Precision Manufacturing
Large-Scale CNC Machining Services for Industrial Components
CNC machining for shafts, flanges, pressure components, and large assemblies. Up to 20 meters, multi-axis capability, and full in-house control.
PRECISION AT SCALE
We specialize in machining large, heavy, and high-tolerance components that smaller shops cannot handle.
Our 230,000+ sq ft machine shop combines high-quality tooling with expert CAD/CAM programming to deliver complex parts meeting the tightest tolerances in Oil & Gas, Power, Mining, and Marine sectors.
Machining capacity up to 20 meters
Deep hole boring to 3 meters depth
Handling components up to 50 tons and multi-meter lengths
Multi-axis precision programming
Advanced CAD/CAM software
Exotic alloy expertise
CNC MACHINING CAPABILITIES
.jpeg)
Horizontal Machining Centers
Large-part CNC milling (up to 5m travel)
Vertical Turning Lathes
Heavy component turning (up to 50 tons)
CNC Turning Lathes
Shaft work (up to 10 meters)
Vertical Milling Centers
Large-part CNC milling (up to 12m travel)
Deep Hole Drilling
Horizontal drilling (up to 3 Meter)
Slotting Machines
Specialized precision operations
Machine Capacity & Technical Specifications
Our CNC equipment is configured for large-scale, high-precision machining across a wide range of industrial components.
Horizontal Machining Centers (HMC)
HMC-1
X-Axis
5000
Y-Axis
1500
Z-Axis
3500
HEIDENHAIN TNCi530
HMC-2
X-Axis
10000
Y-Axis
4000
Z-Axis
750
Rotary: 800×650mm | Siemens 840D
HMC-3
X-Axis
1000
Y-Axis
1000
Z-Axis
500
Rotary: 800×650mm | Siemens 840D
HMC-4
X-Axis
6000
Y-Axis
1400
Z-Axis
700
Siemens 802D
HMC-5
X-Axis
6000
Y-Axis
3000
Z-Axis
700
FANUC Oi-MB
All units in mm
Vertical Milling Centers (VMC)
VMC-1
X: 2300mm Y: 1800mm Z: 1800mm
Swing: 2300mm
VMC-2
X: 1100mm Y: 900mm Z: 600mm
Swing: 1100mm, 1300mm
Vertical Turning Lathes (VTL)
VTL-1
X: 4500mm Z: 2750mm
Swing: 5250mm | 50 Ton
VTL-2
X: 2300mm Z: 1800mm
Swing: 2300mm
VTL-3
X: 1100mm Z: 600mm
Swing diameter – 1100 mm,
1300mm
CNC Turning Lathes
Specialized Equipment
CL-1
X: 150mm Z: 10000mm
Chuck: 200mm (4-jaw) — Long shafts
CL-2
X: 280mm Z: 1200mm
Chuck: 250mm (3-jaw)
Drilling Machine (D-1)
Horizontal Travel: 2350mm
Vertical Arm
Column: 400mm
CL-3
X: 250mm Z: 1800mm
Chuck: 400mm (4-jaw)
CL-4
X: 300mm Z: 2000mm
Chuck: 320mm (3-jaw)
Vertical Slotting Machine (VS-1)
Rotary Table: 600 × 300mm
Table X Travel: 600mm
Table Y Travel: 250mm
THE MACHINING PROCESS
1
CAD/CAM Review
Setup & Tooling
2
3
Precision Machining
4
Final Inspection & Dimensional QA
Toolpath verification and feasibility analysis
Fixture preparation and alignment for precision
Multi-axis machining to tight tolerances
Reports available on request (dimensional, inspection, material traceability)
Milling Precision
. ±0.01 mm tolerance
. Multi-axis coordination
. Surface finishes <32 µin
Deep Boring
. ±0.012 mm tolerance
. Up to 3 meters depth
. Minimal tool chatter
Material Range
. Carbon & Stainless Steel
. Aluminum & Copper
. Inconel, Titanium, Nickels
Tolerances verified against customer drawings and international standards
INDUSTRIES SERVED
CNC Machining Applications by Industry
Oil & Gas
Valve bodies
Pump shafts
Manifolds
Wellhead Component
Power Station
Rotor Component
Bearing Housing
Turbine
Stators
Mining & Minerals
Crusher
Conveyor
Drill Casings
Wear Parts
Marine & Offshore
Propeller Shaft
Rudder Stocks
Hull Fittings
Subsea Component

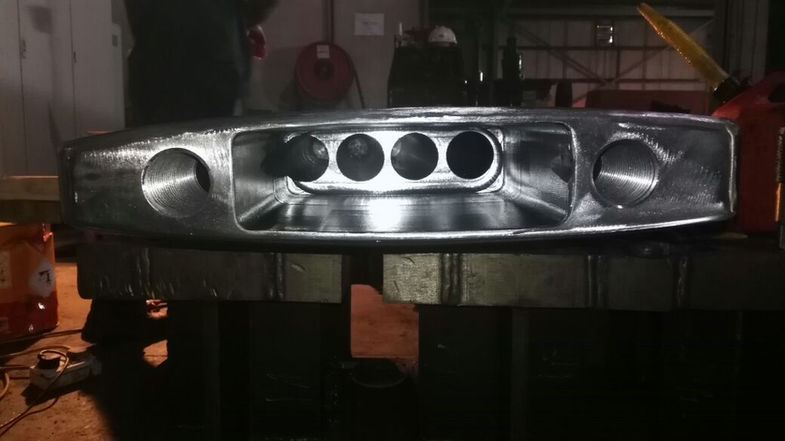

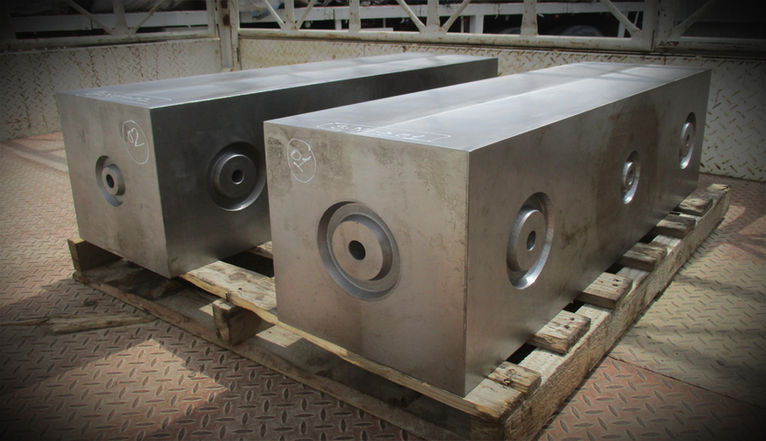

CNC Machined Components
(Actual Projects)
All components manufactured in-house at our facility — no outsourcing.
We support CNC machining projects across the Middle East, Europe, and international markets.
